One Driver All Patching!

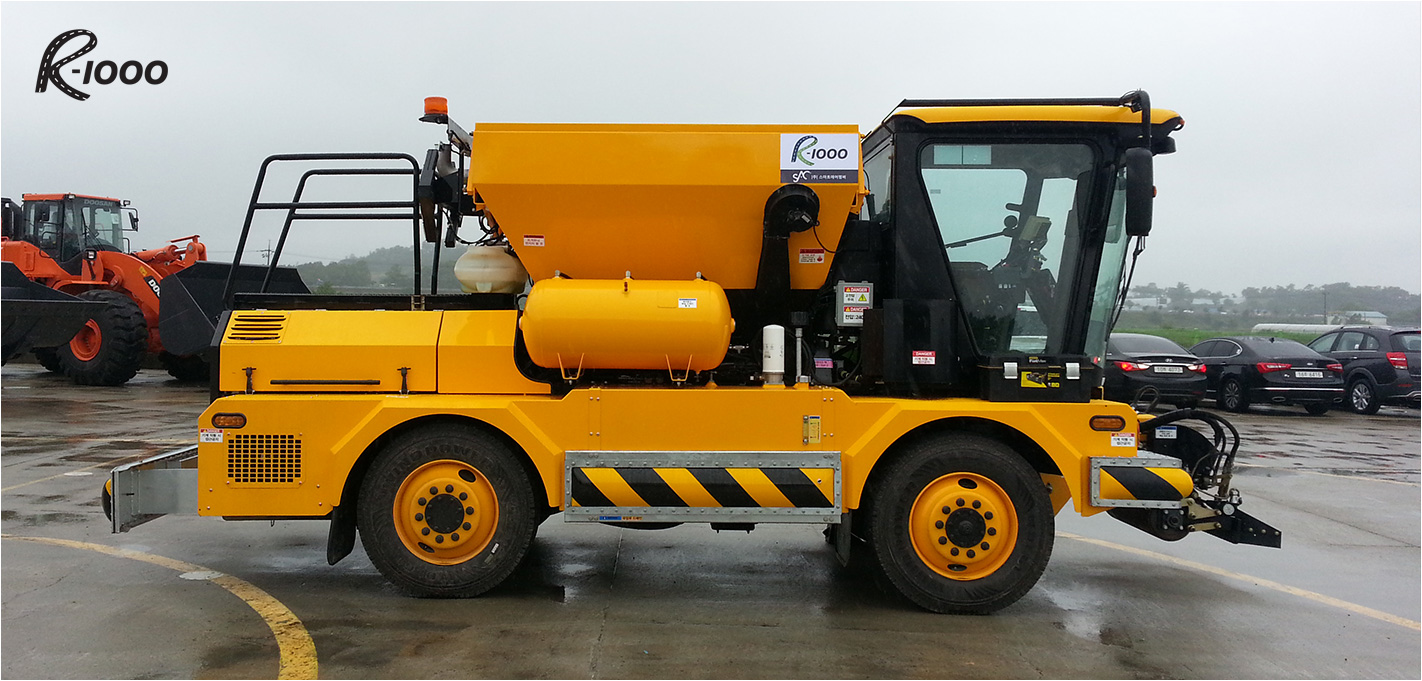

Pot-hole Patcher(R-1000)
Demo video
One Driver All Patching!
Pot-hole Patcher(R-1000)
Product overview
Repair Port Holes with Best Quality safely, quickly and economically
Quickness
Rapid Repair in 2 minutes
Economy
One Driver All Patching
Accessibility to work sites
80 km/hour
Persistence
Roller compaction force
of 1 ton or more
One Driver All Patching!
Pot-hole Patcher(R-1000)
Product Features
Rapid repair
Repair Port Holes with Best Quality
All weather operation
Simple operation
Outstanding mobility
Wide Open visibility for driver
Pleasant work environment
One Driver All Patching!
Pot-hole Patcher(R-1000)
Introduction to Driving system
One-touch driving mode,
Learn more

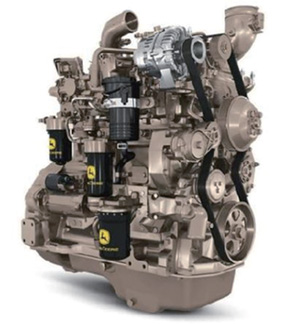

ENGINE
| Model | 4045HF |
| Power (Rated power) | 173/2,400 ps/rpm |
| Cylinder | 4 |
| Fuel type | Diesel |
| Maker | JOHN DEERE |
Brake system
4 wheel disc brakes
Hydraulic Assist Power
Brakes with Electric
Operated Fail-Safe System

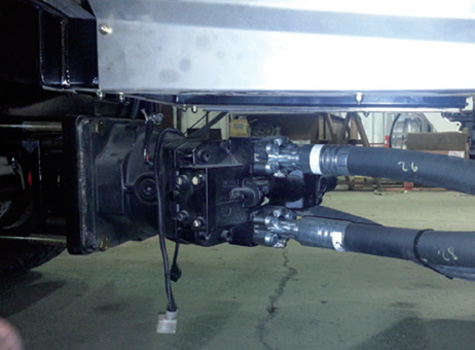

Transmission
- Continuously variable transmission
- LOW / HIGH selection

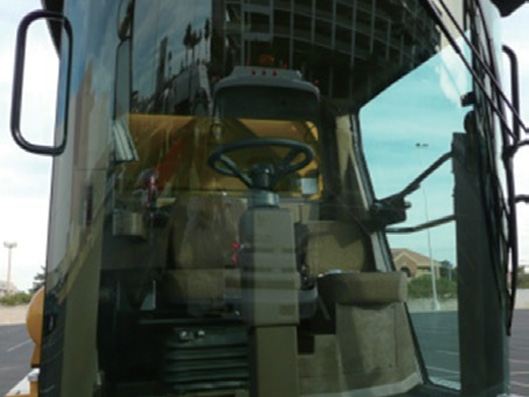

Cabin
- Wide open view
- Front and right tempered glass

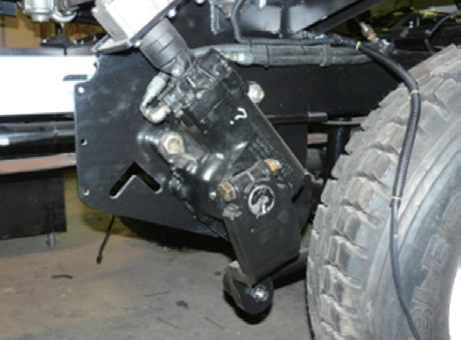

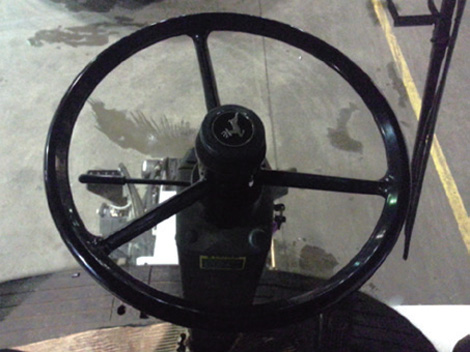

Steering system
Tilt Telescopic Power Steering

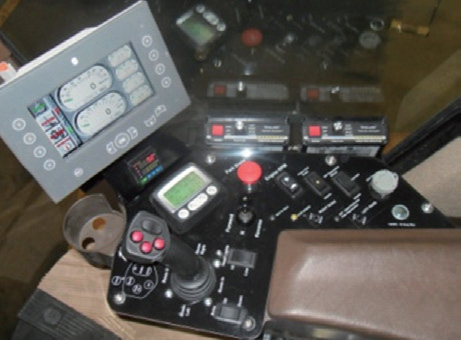

Convenient device
- Control Panel
- Joystick Controller

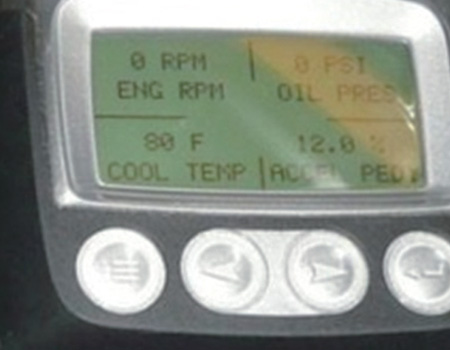

- Murphy Engine Display

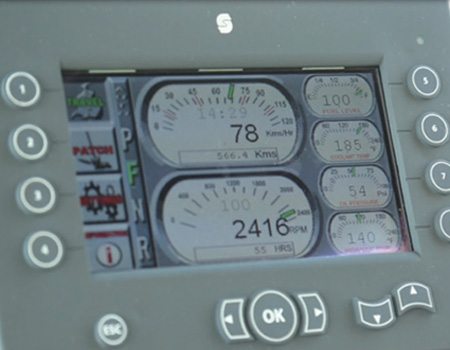

- Multifunction Display
One Driver All Patching!
Pot-hole Patcher(R-1000)

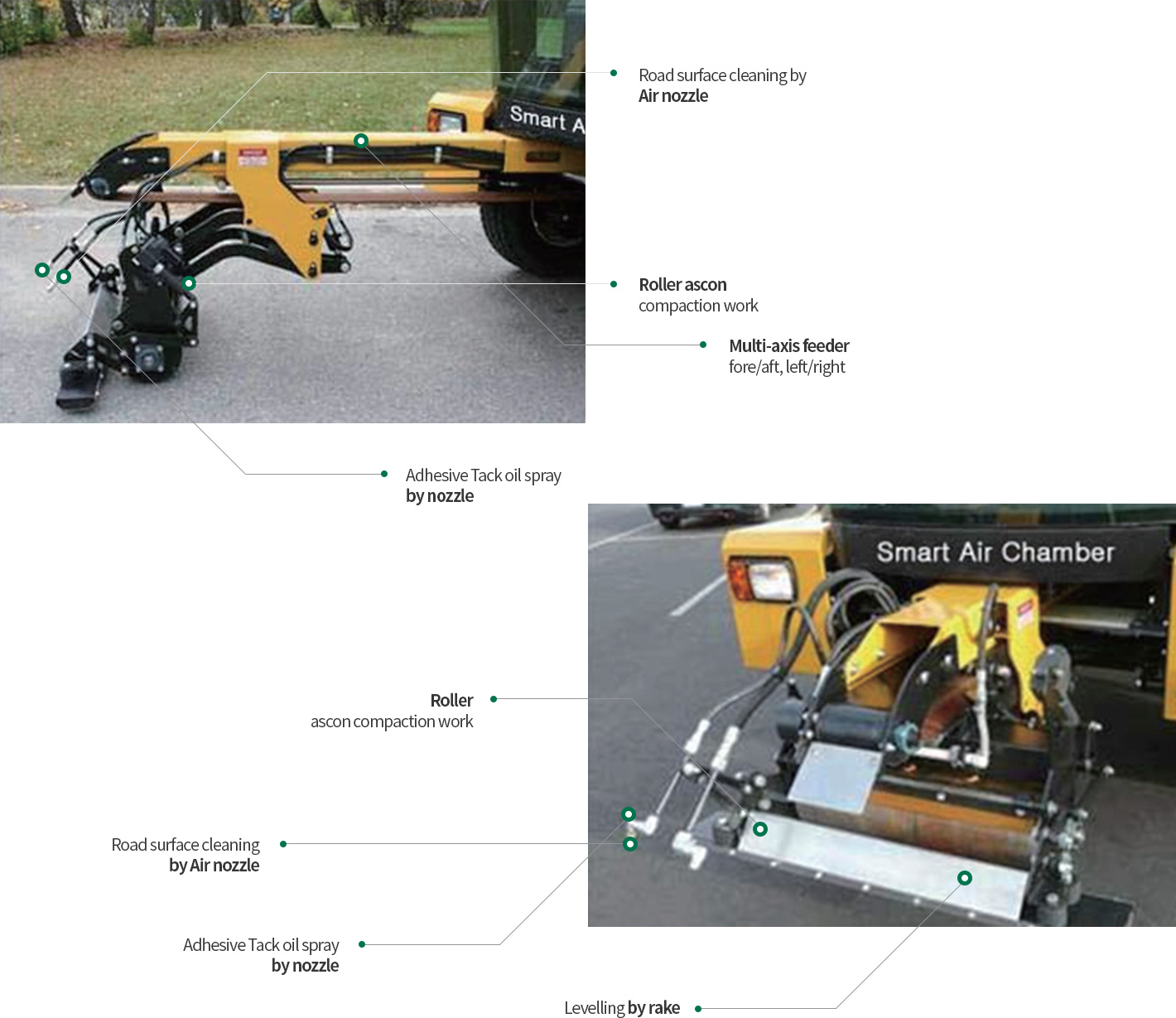

Introduction to Patching Devices
Patcher, Learn More

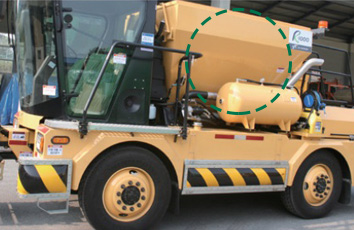

Ascon Heater
Engine Exhaust Gas &
Electronic Heat

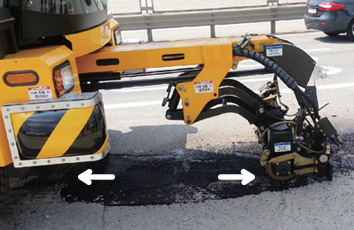

Boom left/right movement

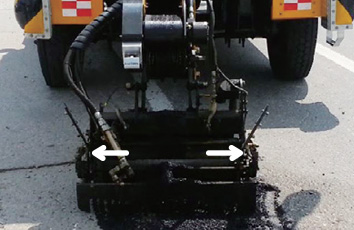

Move Boom fore/aft movement

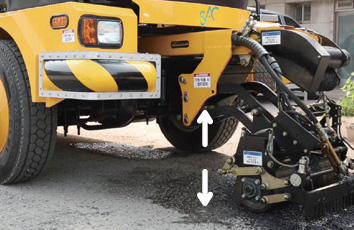

Roller up/down movement
Pot-hole Patcher(R-1000) controller
Learn more
Switch to one touch patching mode
Check engine and transmission parameters

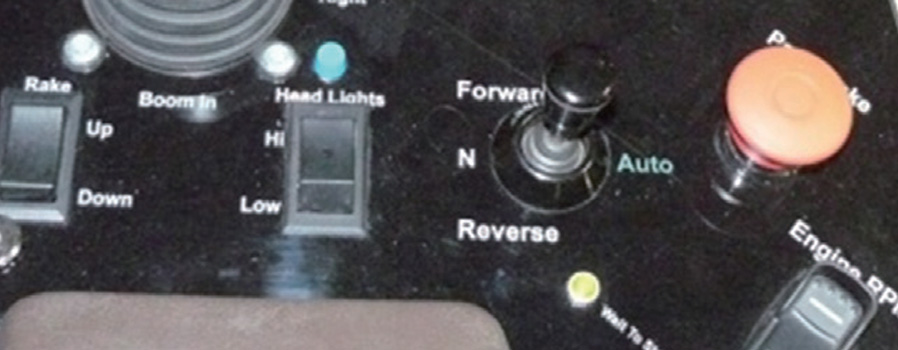

Multipatching control panel

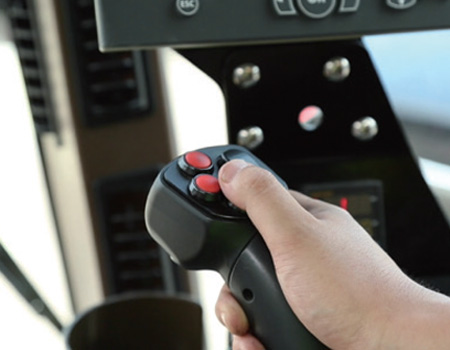

Joystick control
One Driver All Patching!
Pot-hole Patcher(R-1000)
5 Steps for Pot-hole repair
Existing Port Hall Repair
Existing port-hole repair work was a slow and dangerous task, requiring lot of manpower inefficiently.
STEP01
Cleaning Road
surface
STEP02
Spray Adhesive
Tack oil
STEP03
Levelling in the dangerous
environment
STEP04
Hard compaction
work
STEP05
in the dangerous
environment
Porthole Repair with R-1000
The R-1000 is capable of repairing portholes quickly, easily, and safely by improving the existing disadvantages of dangerous and ineffective porthole rapair work.
STEP01
Feed Ascon
STEP02
Cleaning Road
surface
STEP03
Spray Adhesive
Tack oil
STEP04
Level Ascon
STEP05
Roller ascon
compaction work
One Driver All Patching!
Pot-hole Patcher(R-1000)
Economic analysis
R-1000 When used for one year,
More than 500 million Won(a half million US dollars) cost savings!
| Performance item | Existing way | Porthole repair equipment |
|---|---|---|
| Manpower | 3 persons | 1 person |
| working equipment | 3 units | 1 unit |
| Average repair time per porthole | About 8 to 10 minutes | Approximately 2 to 3 minutes l 3 to 4 times reduction |
| Worker safety from crash accident | Risk one life value of about 1.5 billion won | Safety l Reduced by about 70 ~ 80% |
| Porthall repair quality (road life extension) | Insufficient (annual maintenance fee) | Excellent l About 85% reduction |
| Accident reduction | Increase (property average: 1.2 million won / per case, average per person: 2.3 million won / per person) | Reduction l About 60 to 80% |
| Asphalt material saving rate | Lack of adhesion, repetitive maintenance | 3 times higher |
